Remanufactured Equipment

Key Features

  • Complete disassembly to bare frame. Chassis modification, as necessary. Blasted, primed, and painted.
  • Installation of a new Cummins Tier III engine.
  • Installation of a new John Deere Funk DF series transmission.
  • Can-Bus system incorporated into the machine; new wiring and harnesses installed.
  • Hydraulic system may be updated; may also include all new hoses depending on the age of the machine.
  • Couplers are rebuilt.
  • Axles are either rebuilt or replaced.
  • New air compressor may be installed.
  • Railcar is rebuilt.
  • Includes same warranty as a new machine.
  • Overview
  • Specifications
  • Options
  • Photos
  • Videos
  • Resources
  • Manuals

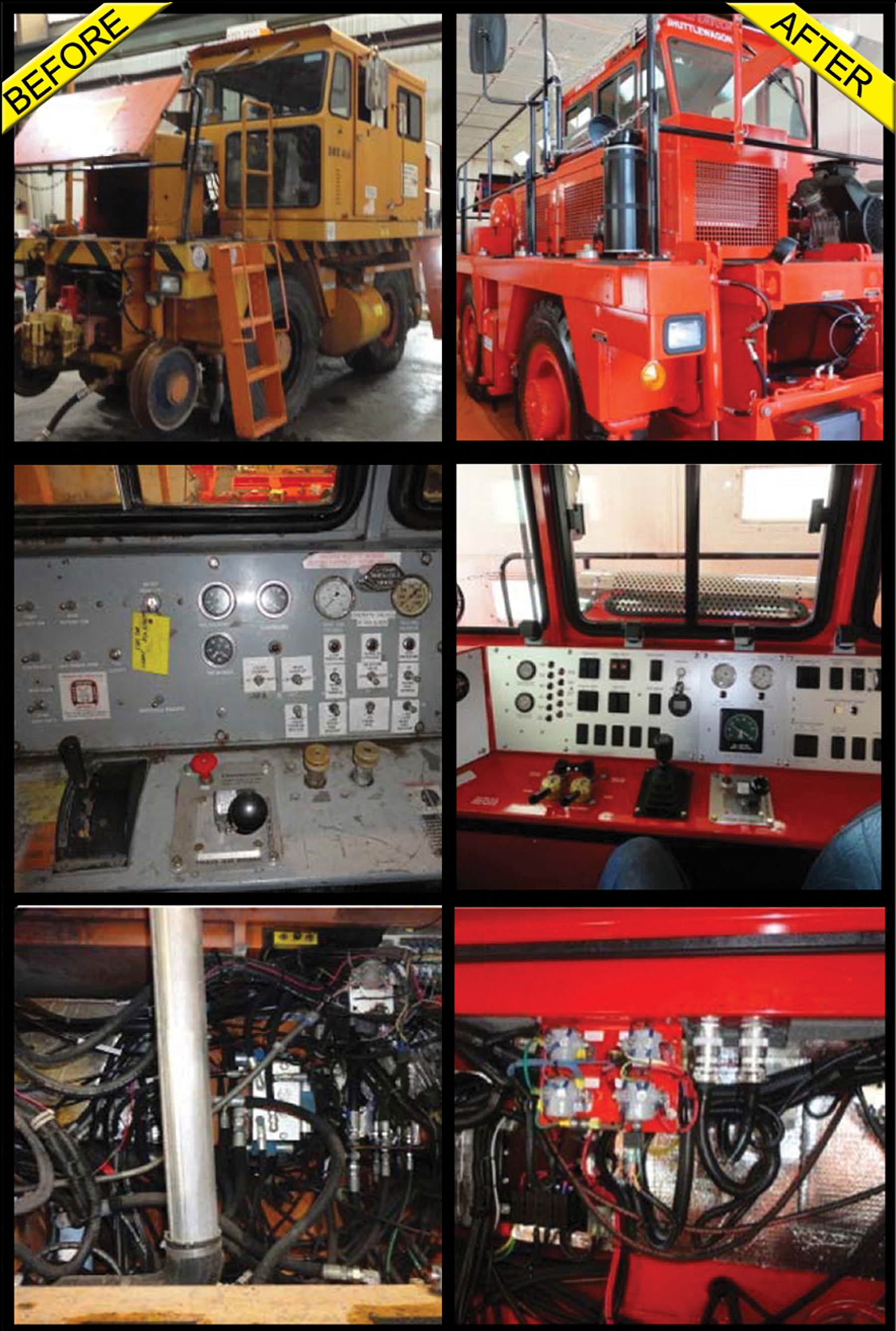

You can obtain previously operated Shuttlewagon mobile railcar movers directly from our factory in the following formats: remanufactured, reconditioned, or as qualified used units available for sale. These machines offer excellent value for the fraction of the cost of a new machine.

Remember, we rebuild our machines using the same rigorous quality control program that is used to build our new machines.

A standard remanufactured machine includes, but is not limited to, the following:

  • Complete disassembly to the bare frame
  • Frame modification, as required
  • Sand blast, prime, and paint chassis
  • New engine
  • New transmission
  • New hydraulic system
  • New air compressor
  • Rebuilt train air system
  • All new wiring harnesses and hoses
  • Qualified remanufactures may be equipped with new Can-Bus electronic controls
  • Rebuilt couplers
  • New or refurbished ca with new wiring and gauges

Previously manufactured models that may be available as remanufactured units include SWX25, SWX35, and SWX45 models. In addition, all A, B, and C series machines can also be acquired as remanufactured equipment. Contact your Regional Sales Manager for details or to schedule a factory visit to see the remanufacturing process first-hand.

In addition to offering these machines for sale, we also provide in-shop services, remanufacturing your existing machine in our rebuild center in Grandview, MO.

Category Type Description
Dimensions Weight 36,000 lbs. to 75,000 lbs.
  Length Varies
  Width Varies
  Height Varies
  Wheel base Varies
Performance Forward and reverse Road and rail
  Speed 0-18 mph
Rail gage 1435 mm 1435 mm only





Option Name

Description

Inclusions

Air bell

An air-activated locomotive standard air bell

Air bell

Mounting bracket

Hardware

Air lines

Bell switch

Air cleaner (pre-cleaner)

An engine air intake pre-cleaner. The cleaner utilizes a venturi to spin the intake air and centrifugally remove particulates prior to entering the standard engine air intake filter.

Air cleaner

Mounting hardware

Air conditioner

33,000 BTU air conditioner

Air conditioner

Condensor

Brackets and hardware

Wiring harness

Broom (rotary)

8’ wide ½ poly, ½ steel bristle hydraulically operated rotary broom

Broom assembly

Hydraulic manifolds

Hoses

Control and wiring

Cab air filter (two-stage pressurized)

The two-stage air filter replaces the standard cab air intake filter for improved air filtration. Especially useful in dusty or corrosive environments.

Filter canister

Filter

Replacement lower filter housing

Connecting hose and clamps

Mounting hardware

Instructions and hole-drilling template

Corrosion resistance (Nyalic)

A clear corrosion-resistant top coating applied to painted surfaces, fasteners, and connectors.

Applied at factory during painting

Fire extinguisher

10# dry chemical fire extinguisher for A, B, and C class fires.

Fire extinguisher

Mounting bracket

Hardware

Heater (engine oil pan – Cummins QSB/QSC)

500 watt 110 VAC adhesive heating pad attaches to engine oil pan.

Heater

Sealant

Cord clamps

Heater (fuel tank)

1000 watt 120 VAC immersible heater

Heater

Connecting fittings

Cord clamps

Heater (hydraulic oil reservoir)

250 watt 110VAC immersible heater

Heater

Cord clamps

Heater (transmission oil)

125 watt 120 VAC immersible heater

Heater

Connecting fittings

Cord clamps

Ice breaker

A hydraulic override to increase rail wheel pressure for breaking up ice on rails.

Hydraulic manifold

Hoses

Wiring and switch

Lube system (automatic)

A single-point auto-dispensing lubricating system.

Dispenser

Tubing

Fittings

Single-point manifold

Lube system (single point)

Single-point lube system for single steer high-pressure caliper axles.

Manifolds

Fittings

Tubing

Mounting brackets

Hardware

Mirrors (front right-hand side)

Includes cab side mirror and rail wheel aligning mirror for right-hand side of cab.

Mirrors

Brackets

Mounting hardware

Mirrors (heated front left-hand side)

Includes cab side mirror and rail wheel aligning mirror with heater elements for left-hand side of cab.

Mirrors

Brackets

Wiring harnesses

Mounting hardware

Mirrors (heated front right-hand side)

Includes cab side mirror and rail wheel aligning mirror with heater elements for right-hand side of cab.

Mirrors

Brackets

Wiring harnesses

Mounting hardware

Radio remote control

FCC-licensed frequency operator transmitter and vehicle receiver

Transmitter

Receiver

Rail air reservoir (100-gallon capacity)

Dual 50-gallon air reservoirs

Reservoirs

Fittings

Hoses

Rail wheel flange lubricators

Automatically dispenses a dry graphite lubricant against the rail wheel flange to reduce friction between the wheel flange and the rail when moving through curves.

Dispensers (four each)

Mounting brackets (four each)

Lubricant sticks

Mounting hardware

Rail wheel continuity

A cross-wheel continuity cable for ensuring electrical continuity between right and left rail wheels for engaging electrically activated signals.

Wiring cable

Clamps

Connectors

Hardware

Remote vehicle monitor/ShuttleTrak

Remotely monitored vehicle output with diagnostic functions

Antenna

Transceiver

Wiring

Mounting hardware

Seat (high-back with headrest)

High-backed four-way air-cushioned seat with improved lumbar support and headrest.

Seat

Installation hardware

Spark arrestor

A baffle extension for the exhaust pipe to reduce / eliminate sparks from the exhaust gases.

Spark arrestor

Extension tubing

Connecting clamps

Switchman II

Hand-held emergency stop remote for ground personnel.

Receiver

Hand unit and holster

Wiring harness

Installation instructions

Snow plow (adjustable V)

Hydraulically controlled multi-position V-blade snow plow.

Snow plow

Manifolds

Hoses

Wiring

Hardware

Spotlight (cab front / remote control)

A remotely controlled (from inside the cab) front-mounted spotlight.

Spotlight

Mounting bracket

Hardware

Wiring

Tire (foam filled)

Polyurethane foam-filled tires

Tire

Foam filling

Rim assembly

Tire (nitrogen filled)

Inert nitrogen gas-filled tires (factory filled)

Tire

Nitrogen charge

Rim assembly

Train air auxiliary (rear only)

A general-purpose auxiliary air line mounted above the rear deck.

Hoses

Mounting bracket

Fittings

Train brake air gauge (Graham-White)

Large heavy-duty train brake air gauge.

Gauge

Fittings

Mounting hardware

Work lights (cab – LED)

Two front and two rear cab-mounted LED work lights.

Lights

Wiring

Switch

Mounting hardware
