Flaw testing, flawlessly done

The Cyl-Sonic Industrial scans through paint and most clear coatings to detect potential pits, gouges, cracks, and corrosion. In addition, the system measures and detects lost cylinder wall thickness as well as identifies undesirable moisture inside the cylinders.

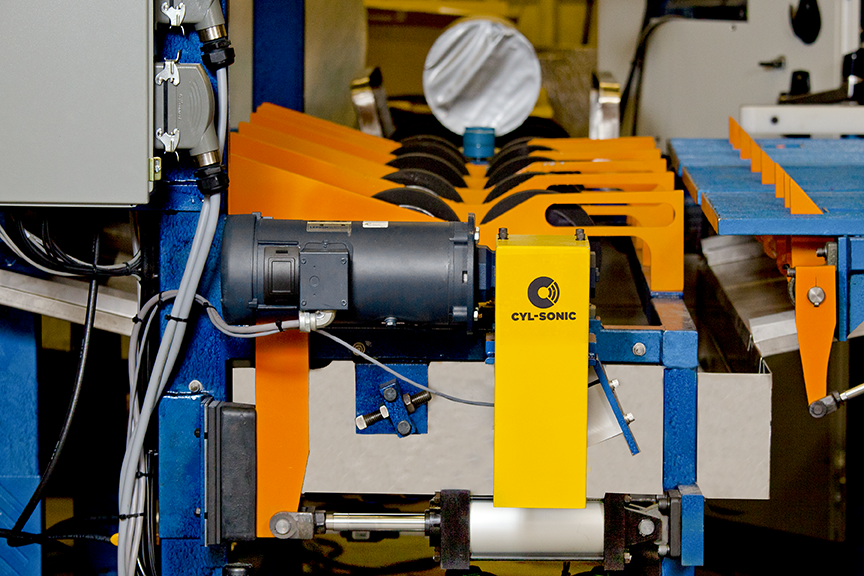

Wheel probe technology

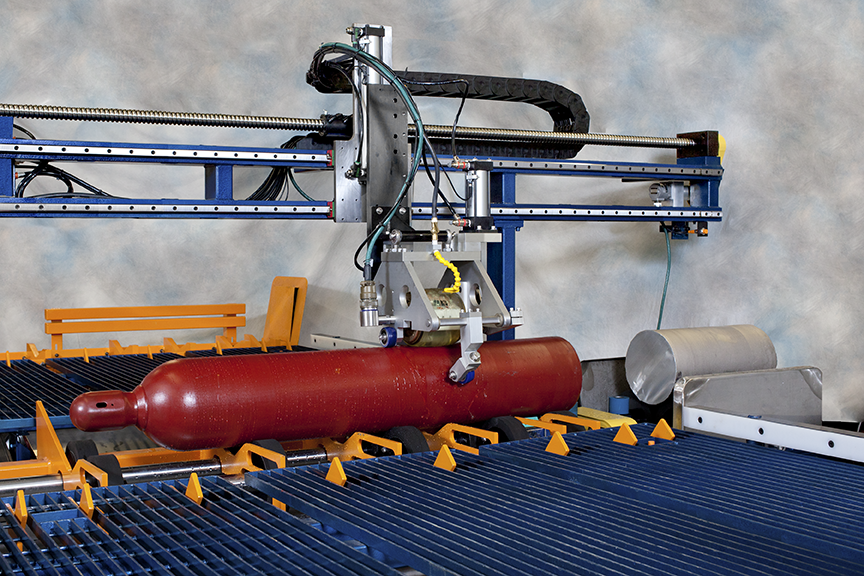

The ultrasonic wheel probe includes nine complementary high-frequency transducers - the most integrated transducers in one units in the industry - that search for flaws in traverse, longitudinal, and oblique directions. This ensures 100% coverage of required exam volume and area. The four oblique transducers excel in detecting any moisture droplets inside cylinders.

Safer to operators and environment

Unlike hydrostatic testing methods, ultrasonic examination eliminates the need to remove hazardous gases from cylinders, helping protect both your operators and the environment. The method does not require valve or O-ring removal, so there is less need for valve replacement as well as reduced cylinder neck thread damage.

Ultrasonic examination also eliminates the need to introduce water into the cylinders, helping prevent product contamination and eliminating or minimizing the number of post-requalification cylinder treatment processing steps.

Saves time and operating costs

The Cyl-Sonic Industrial saves on personnel costs. Since operators don't need to spend time drying and re-valving the cylinders, daily production levels can be much higher. In addition, the cost per cylinder test is lower for UE testing than hydrostatic testing.

One machine, many cylinder types

The Cyl-Sonic Industrial system handles a wide range of outside diameters, lengths, and materials, which means you can inspect most cylinder types using a single machine.

Calibration standards ensure accuracy

Each system uses a calibration cylinder standard with simulated flaws. This allows accurate testing and comparison against known simulated flaws.

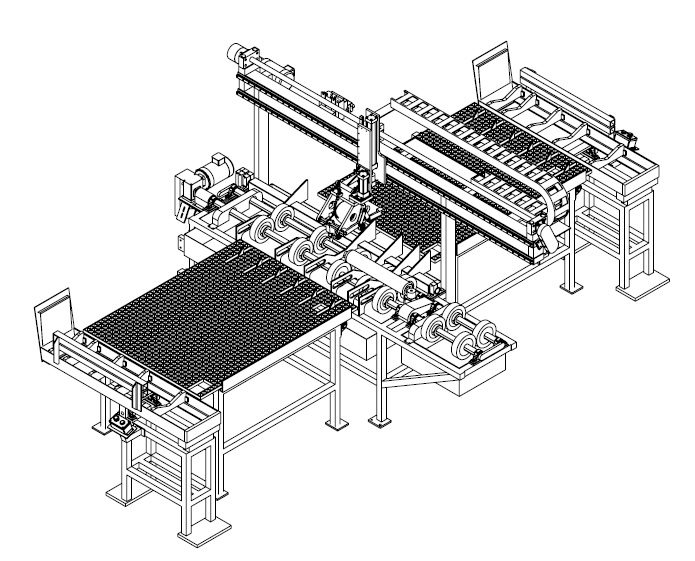

Auto mode = speed and productivity

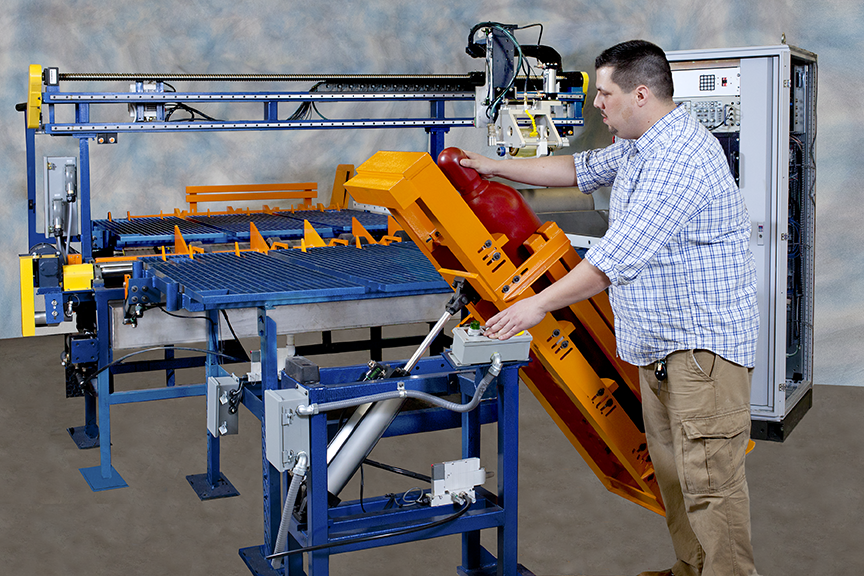

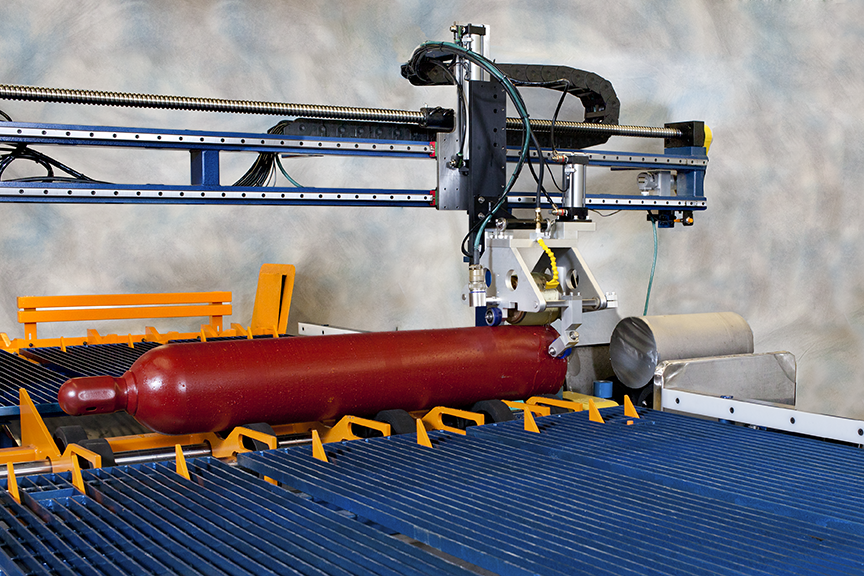

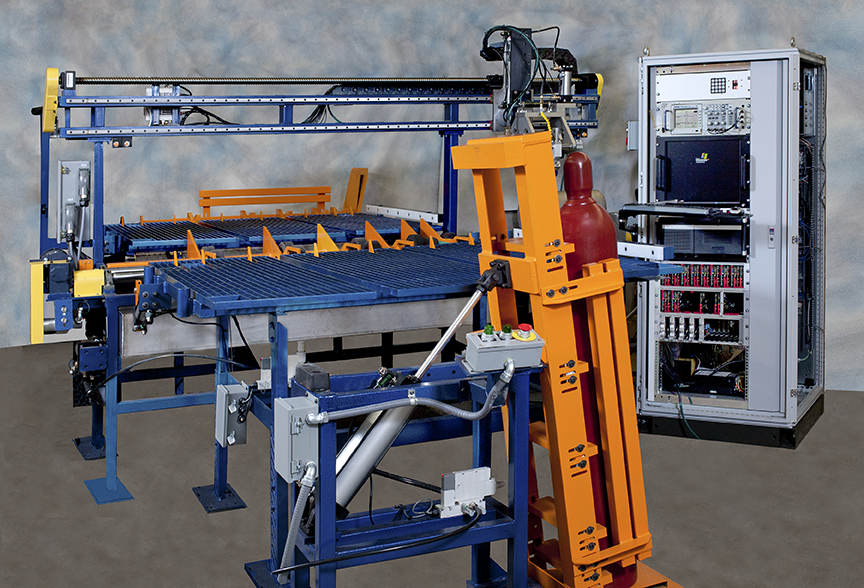

The Cyl-Sonic Industrial includes a deck that allows simultaneous loading/unloading while the automated testing process continuously operates - meeting your high-volume, high-productivity needs.

Ideal for integration with other processes

The Cyl-Sonic Industrial can be easily customized to integrate with any or all of the following operational processes:

  • Surface blasting
  • Painting
  • Marking
  • Database barcoding

Software control and record retention

Integrated software allows the operator to control all axis motion, including position, rotation, and sensitivity. Calibration setups are stored and reused.

The software displays real-time scanning test results by showing the locations of any detected flaws: the system also alerts the operator about a cylinder's pass/fail status.

Meets all regulatory requirements

The Cyl-Sonic Industrial complies with the requirements of the following regulatory agencies:

  • DOT - Meets US Department of Transportation cylinder requalification requirements (SP 14920)
  • TC - Meets Transport Canada cylinder requalification requirements (SU 10807)
  • ISO - Meets International organization for Standardization requirements (ISO 10461 & 6406)


Inspection systems are only the beginning

Nordco also offers a full range of services to keep your processes running smoothly:

  • Operator training
  • System verification services
  • System maintenance and repairs
  • Replacement parts
  • Remote access assistance

In addition, Nordco also oversight and consulting services:

  • Development and implementation of in-house UE requalification programs
  • Turnkey start-up, management, staffing, and operation of in-house requalification facilities
  • Provision of special permit or equivalency certificate and DOT Senior Review Technologist (SRT) services for training, certification, and oversight of in-house cylinder requalification operations

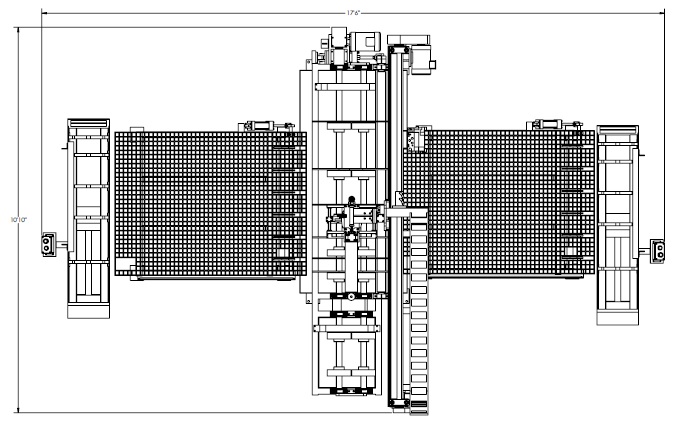

Category Specification Type Description

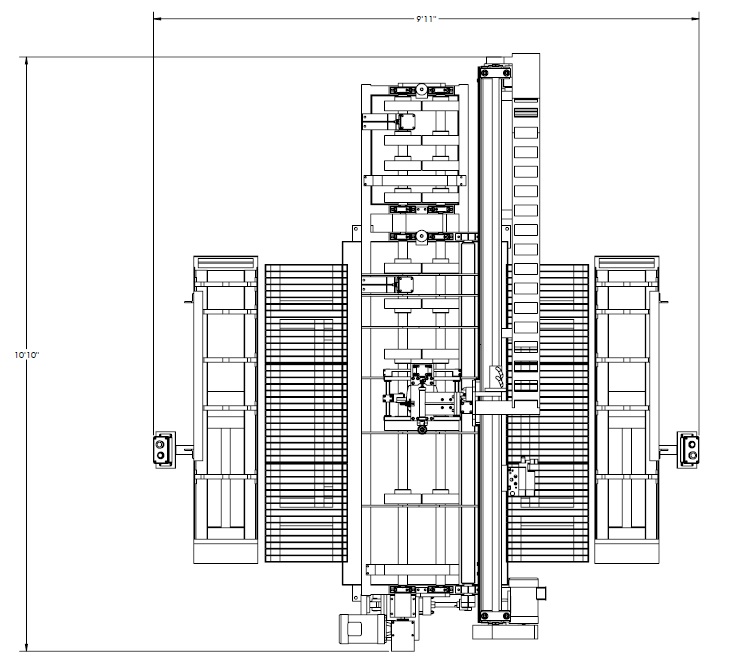

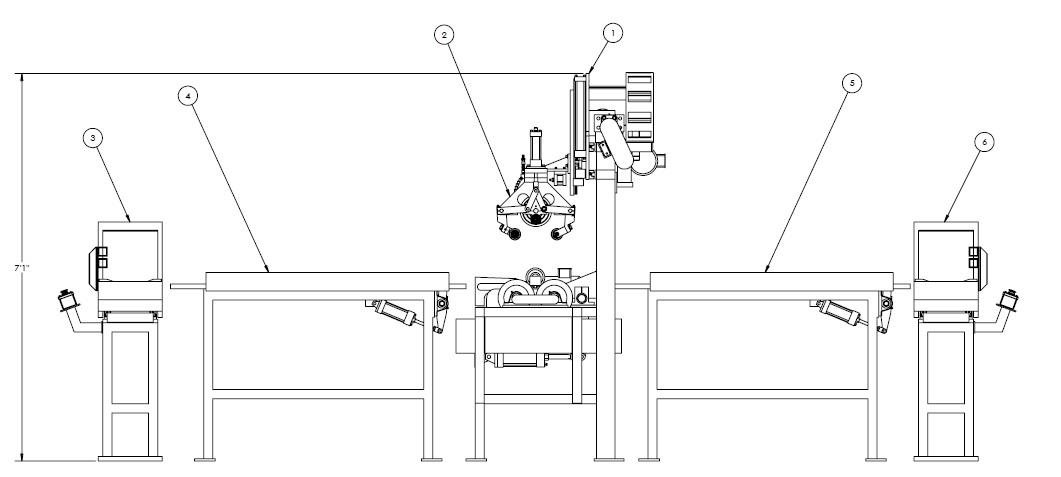

General Length 130" (10' 10")
  Width 46" (3' 10")
  Height 85" (7' 1")
  Weight ~600 lbs.
Cylinder Inspection Tested Products Steel (DOT 3A and 3AA), Aluminum (DOT 3AL), and other execption steel cylinders per US DOT and IS 4806 & 10461 specifications
  Diameter Range 4" to 10.5" outside diameter
  Wall thickness 0.080" to 1.0"
  Length 11" to 60"
  Exam Coverage 110% with a 0.250 helix
  System Performance 98%+ system uptime
  Configurations Multiple load/unload configurations available
Utilities Electric 220/110 VAC, 60 Hz, 25A
  Pneumatic 80psi


Estimated System Throughput

Cylinder Model Outside Diameter Length w/o valve and cap Estimated Throughput
Medical E (3AL) 4.3" 25.75" 27-30 cylinders/hour*
20 (3AA) 5.25" 14" 48-60 cylinders/hour*
300 (3AA) 9.25" 55" 27-30 cylinders/hour*

* operator dependent

What is Ultrasonic Examination...

Ultrasonic Examination (UE) provides an exciting technology alternative to hydrostatic testing for cylinder recertification.

UE tests measure the thickness of cylinder walls over their sidewall full lengths. Cylinders do not pass the test if, at any point, the thickness of their walls falls below the established minimum.

In addition, UE identifies small faults, such as cracks, corrosion, pits, and gouges that are not always found during a standard hydrostatic test.

UE also eliminates the need to drain residual contents or remove valves and O-rings.

Ultrasonic examination eliminates problems inherent in hydrostatic testing for cylinders used in high-end specialty gas and electronic services. These cylinders receive special surface treatments and, after hydrostatic tests, must have those treatments re-applied, followed by a thorough drying of the cylinder interior.

Ultrasonic examination also results in fewer rejected cylinders than hydrostatic testing, since many of the testing errors, including leaking seals, operator mis-interpretations, and inaccurate burette readings, are no longer factors.

Since ultrasonic examination has been determined to be extremely accurate in detecting cylinder flaws, the US Department of Transportation has:

  • Waived the need for internal visual examination of cylinders used in certain services, and
  • Approved the extension of certain cylinder requalification periods
