TPX

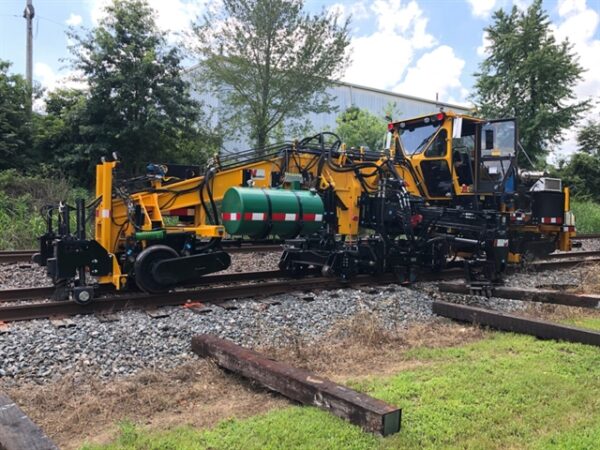

The TPX is an advanced tie replacement machine featuring a unique TPX Mode for automated plate handling and a versatile Tie Only Mode for increased operational flexibility.
- Single-operator climate-controlled fully enclosed cab
- CANbus control system allows operators to easily establish all their critical operational settings from an intuitive tablet display (combined monitor and keyboard). Mechanics use the same CANBUS-controlled tablet display to quickly diagnose any equipment problems.
- Tie only mode capability for increased versatility near switches, crossings, and certain operating conditions
- Automated plate handling system that mechanically secures the plate to the rail during tie exchange
- Dual electrical CANBUS Joystick controls
- Pivoting tie exchanger workhead 10 degrees forward and reverse of tie to be worked with auto centering
- 82-inch-stroke-length workheads for work on either side of track; 12,880 lbs. insertion force /20,740 lbs. removal force
- Adjustable gripper force to prevent damage to new ties or disintegration of old ties during removal
- Switch settings for handling welded or jointed rail
- Adjustable to different rail heights
- Access to the cab from either side of the machine
- 44,500lbs
- 37′ Length
- 27′ 3″ Wheel Base
- 9′ 11″ Width
- 11′ Height
- 145 Gallon Fuel Tank
- Cab window shades, vandal guards (protective screens over cab windows)
- Rail lift spotting feature, tie insertion stop device, upgrades to make machine suitable for work in third-rail territory
- Danfoss Series 45 (S45)
- Air-powered grease lubrication system (35# pail & 32’ hose)
- Electric hydraulic tank fill system
- Spare hose tree
- Remote coolant filter loops
- Schroeder KF 30 case drain return filtration
- Heated outside mirrors, perimeter lighting package
- Additional book storage box, track tool box
- “Danger Live Track” retractable belt, DOT reflective tape, extra parts/operations/maintenance manuals, rail sweeps, tow bar with D-handle hitch pins, windshield washer fluid tank and nozzles
