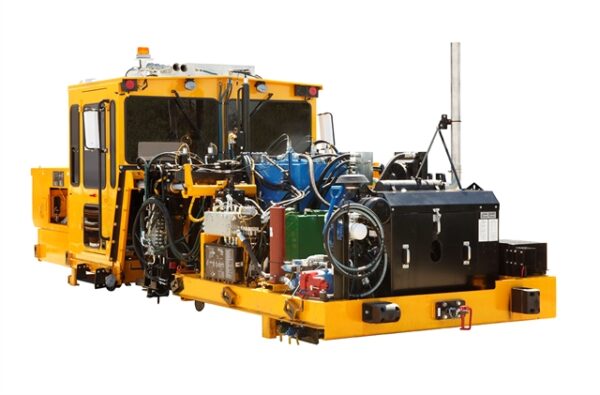

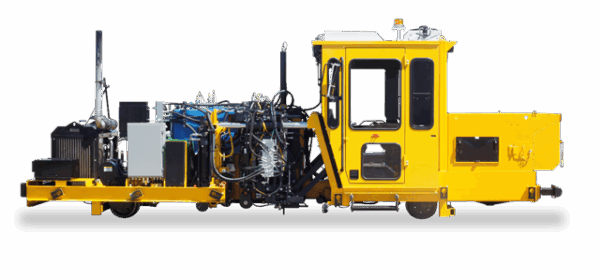

SE Spiker
The SE Spiker is an advanced rail maintenance machine that combines powerful equipment with sophisticated control systems. Its CANBUS tablet display enables intuitive operational settings and diagnostics, while the hydrostatic propel system offers superior torque and track travel control.
– CANBUS control system allows operators to easily establish all their critical operational settings from an intuitive tablet display (combined monitor and keyboard). Mechanics use the same CANbus-controlled tablet display to quickly diagnose any equipment problems.

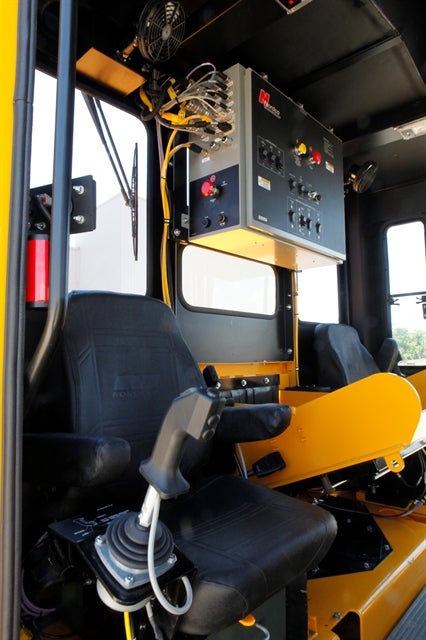

– Enclosed, climate-controlled cab
– Two operators and one feed tray operator
– Proportional gager control allows fast and reliable gaging operations
– Hydraulic pattern cylinders provide gun spacing. Optional pattern memory includes a previous pattern recall feature, allowing operators to quickly set up and store spacing pattern
– Proportional propel pedals, as well as variable pump and motors, resulting in much smoother track travel
– Large front windows and a raised operator seat allow clear sight lines across the top of the machine
– Raised cab floor and the barrier-free walkway reduces potential trips and falls
– Transducers in the up/down cylinders replace proximity switches for easy adjustment of cylinder ready heights
– Joystick controls
– Boom & winch for loading spike kegs
- 28,750lbs
- 25′ 8″ Length
- 13′ 6″ Wheel Base
- 8′ 6″ Width
- 9′ 10″ Height
- 90 Gallon Fuel Tank
- Cab-controlled power locks (gager, nipper, workheads), air conditioning, cab pressurizer, cab window shades, engine-driven air conditioner, spike feeder swivel seat pedestal, vandal guards for windows, windshield washer fluid tank and nozzles
- Push-style bulk loader, cluster buster /spring-mount option for bulk loader, dust collection system for bulk spike loader, ladder and walkway for bulk loader, steps and grab irons for bulk loader maintenance access, Lewis bolt ever-grip driving heads
- Corner-mounted jackstands
- Electric hydraulic tank fill system
- Spare hose tree
- Remote coolant filter loops / Remote fluid drains
- Schroeder KF 30 case drain return filtration
- Electric emergency pump
- Heated outside mirrors, perimeter lighting package
- Additional book storage box, operator belongings box, track tool box
- “Danger Live Track” retractable belt, DOT reflective tape, extra parts/operations/maintenance manuals, rail sweeps, tow bar with D-handle hitch pins
- Aluminum replacement for standard steel turntable, turntable warning light and buzzer
