Adjust to different working conditions
-
Make simple adjustments to set the claw height for different rail heights.
-
Quickly change the width of the claw opening at any time.
-
Easily position inner and outer claws to align for different spike patterns.
-
Use optional specialized workhead assemblies to handle either Lewis bolts or hairpin spikes.
Keep production levels high while maximizing spike reuse

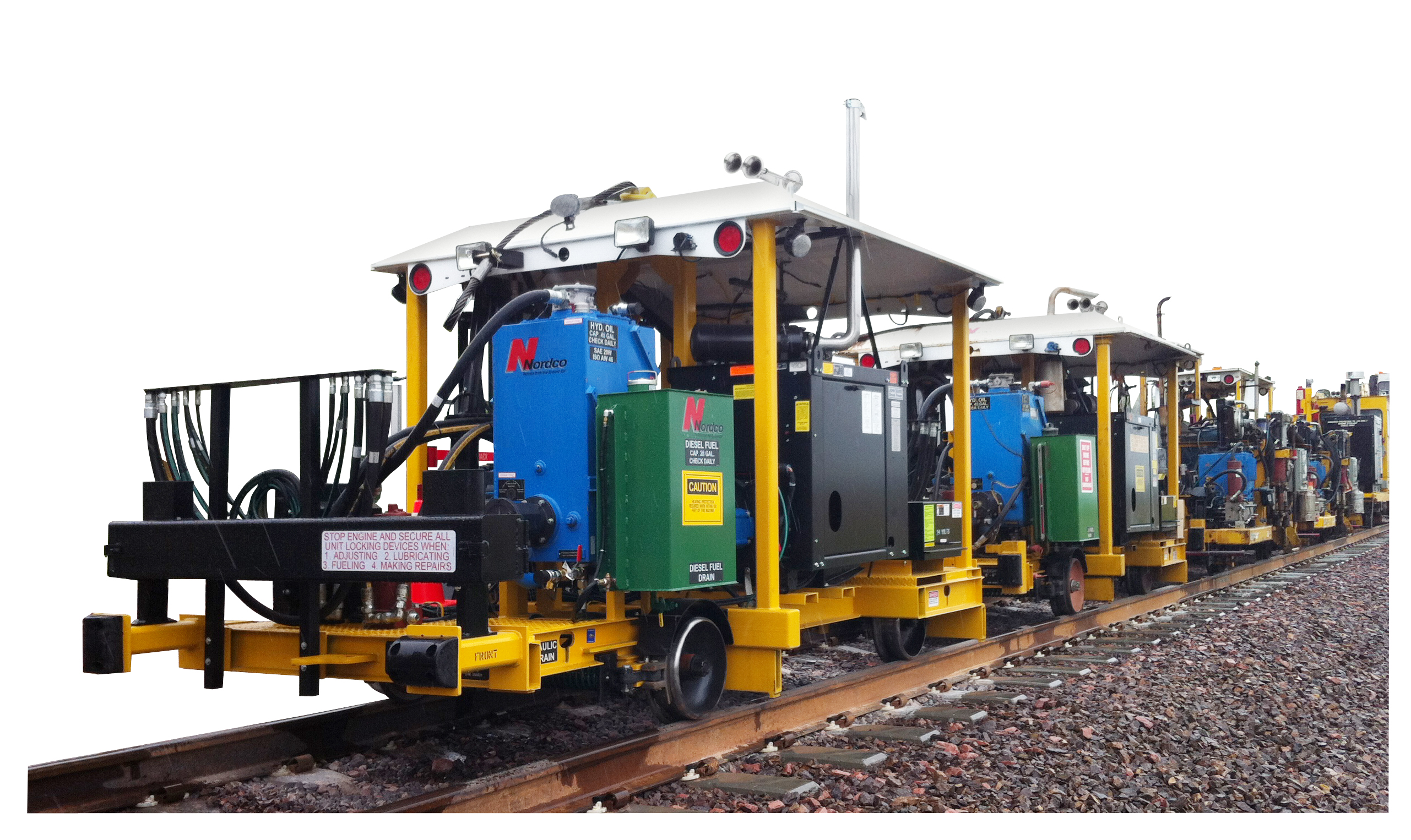

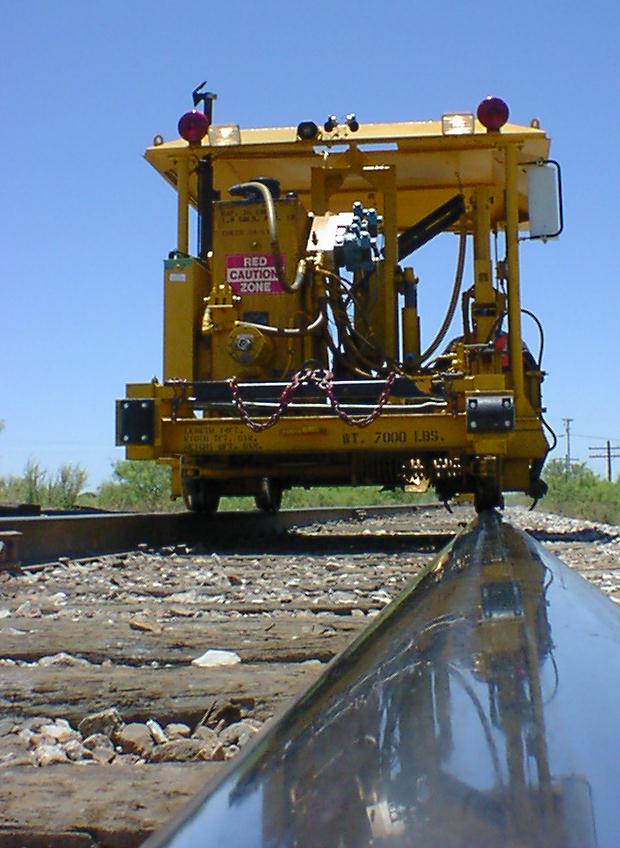

Ideal for high-production, easy-spotting applications, the Super Claws pulls two spikes simultaneously from each side of the rail. The patented Nordco claw provides powerful pulling power, while the Super Claws design allows spike extraction where other machines can’t reach, such as at joint bars. Since claw fingers grasp spikes under the head while the workhead assembly pulls straight up, spikes stay straight and re-usable.
Switch between rail and tie model
The Super Claws switches easily between rail and tie mode, allowing complete operator control over the pulling head positioning after each operation.
Small footprint means lower transportation costs
The Super Claws is ideal for contractors and short-line railroads who need to quickly move equipment to different locations. The compact size and low weight reduce transportation costs and make it easier to load and unload as well; an optional lifting sling is available
|
Category |
Specification |
Value |
|
General |
Weight |
7,250 lbs |
|
|
Length |
14’ |
|
|
Width |
7’ 6” |
|
|
Height |
8’ 6” |
|
|
Wheel base |
7’ |
|
|
Travel/work/towing speed |
25 mph (maximum) / 5 mph (maximum) / 20 mph (maximum) |
|
Capacities |
Fuel tank |
12.8 gallons |
|
|
Hydraulic tank |
28 gallons |
|
Engine |
Make/Model |
John Deere 4024D |
|
|
Type |
Four-cylinder |
|
Hydraulic System |
Make/Model |
Sauer Danfoss Series 45 |
|
|
Type |
J-frame, open-circuit, axial piston pump |
|
Electrical System |
Battery |
24 Vdc (dual 12V DC batteries), 1150 cold-cranking amps |
|
Axle Drive System |
Drive and propulsion type |
Four-wheel, dual-axle, hydraulic chain drive |
|
Brakes |
Type/Style |
Spring-applied/hydraulically released, four-wheel shoe-type |
|
Category |
Option Type |
Description |
|
Pulling Tools |
Hairpin |
Hairpin pulling hydraulic and electrical update, hairpin pulling tools |
|
|
Lewis bolt |
Evergrip pulling components |
|
Repair & Maintenance |
Corner-mounted jackstands |
Lifts the unit to allow under-machine repairs |
|
|
Electric hydraulic tank fill system |
Allows quick filling of hydraulic tank |
|
|
Coolant filter loops |
Allows quick filter maintenance |
|
|
Electric emergency pump |
Allows workhead to be moved if engine fails |
|
Other Accessories |
Gauges and alarms |
Speedometer, hydraulic reservoir temperature gauge, turntable warning light and buzzer |
|
|
Lighting and mirrors |
Heated outside mirrors, perimeter lighting package |
|
|
Storage |
Additional book storage box, track tool box, box for operator items |
|
|
Miscellaneous |
DOT reflective tape, rail sweeps, lifting sling capable of lifting entire machine |
